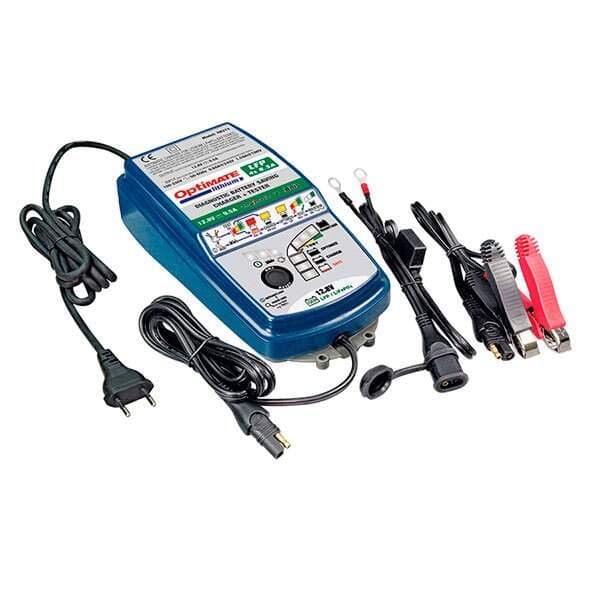

Battery charger Optimate Lithium 4s

The TUNE mode provides a stable supply for reprogramming the vehicle system, displaying the vehicle in exhibition halls or conserving memory settings when the battery cables are disconnected, for mounting accessories on the battery or when the battery is replaced .

BMS reset, button activated: for low voltage batteriesniciables / with protection for deep discharge.

SAVE mode (recovery) of batteries with BMS restart: it is carried out from 0.5 V with continuous testing / supervision of load acceptance or the status of the cells (exhausted or inadequate). Thus, unnecessary (and unsafe) charging of a battery in poor condition is prevented.

SafeTº : automatic adjustment of the load current in theCharger depending on the ambient temperature. Reduced charge with sub-zero temperatures and no load if the temperature is below -20 ° C / -4 ° F (may damage the lithium batteries).

Ampmatic : the microprocessor adapts the current to the ideal load curve of LiFePO4 according to the size and condition of the battery in order to make the load as complete and fast as possible.

Specifications:

• LOAD AMPERAGE: 9.5 A (AmpMatic)
• USE: indoors or outdoors (minimum temperature: -20 ° C / -4 ° F).
• RECOVERY: low voltage start of 0.5 V and recovery and low voltage test in 3 phases.
• PERFECT FOR: LiFePO4 (LFP) batteries of the 4 series from 2 to 120 Ah.
• FOOD: global food(100-240 V at 50-60 Hz), high performance (CEC classification), fully sealed.

PRESENTATION: splash-proof housing with wall hangers, 152 cm (5 feet) AC power cable and 180 cm (6 feet) charging cable finished in SAE connector.
