Dellorto VHSH 30 CS

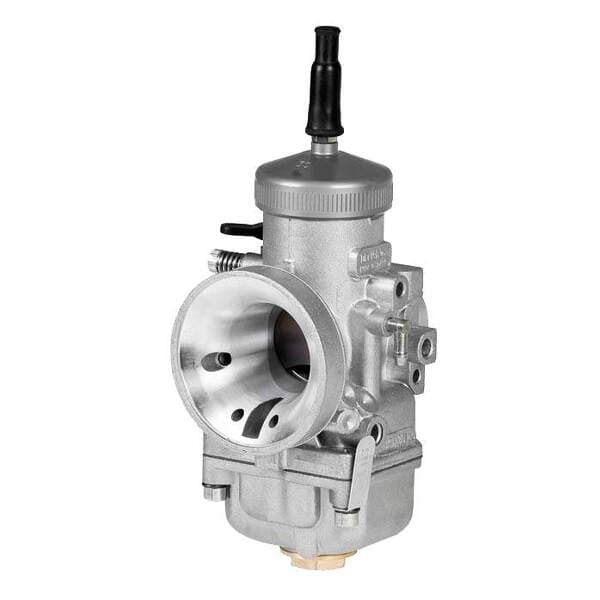

Carburetor Dellorto VHSH 30 CS

Dellorto carburetor for motorcycles and scooters and 2-stroke karts VHSH 30 CS 30mm Ref 09303

0 opinions

Discount 12%

285.37 €

324.28 €

VAT included

amount

Italian Dellorto VHSH 30 CS Carburetor for Karts from 50cc to 125cc

Specifications:

  • Diffuser: Ø30
  • For 2-stroke engines
  • flat gas valve
  • reported diffuser
  • Independent circuit starting device
  • Idle system with jet and air adjusting screw
  • Maximum system with mechanical regulation of the mixture by means of a conical pin
  • versions with minimum adjustment screws on the right and/or on the left
  • Tray with the possibility of mounting independent floats
  • Connection for elastic mounting Ø 35
  • Air intake connection Ø 64 for connection of fittings and special for free suction
  • Click here to see exploded view
  • w.dellorto.it/wp-content/uploads/GAMMA_VHSH.pdf" target="_blank">Click here to see the manufacturer's specifications
